Inspection tasks to 15 metres

• Modular Inspection System for longer length inspections with superior image

• Choice of 6.4mm or 8.4mm diameters

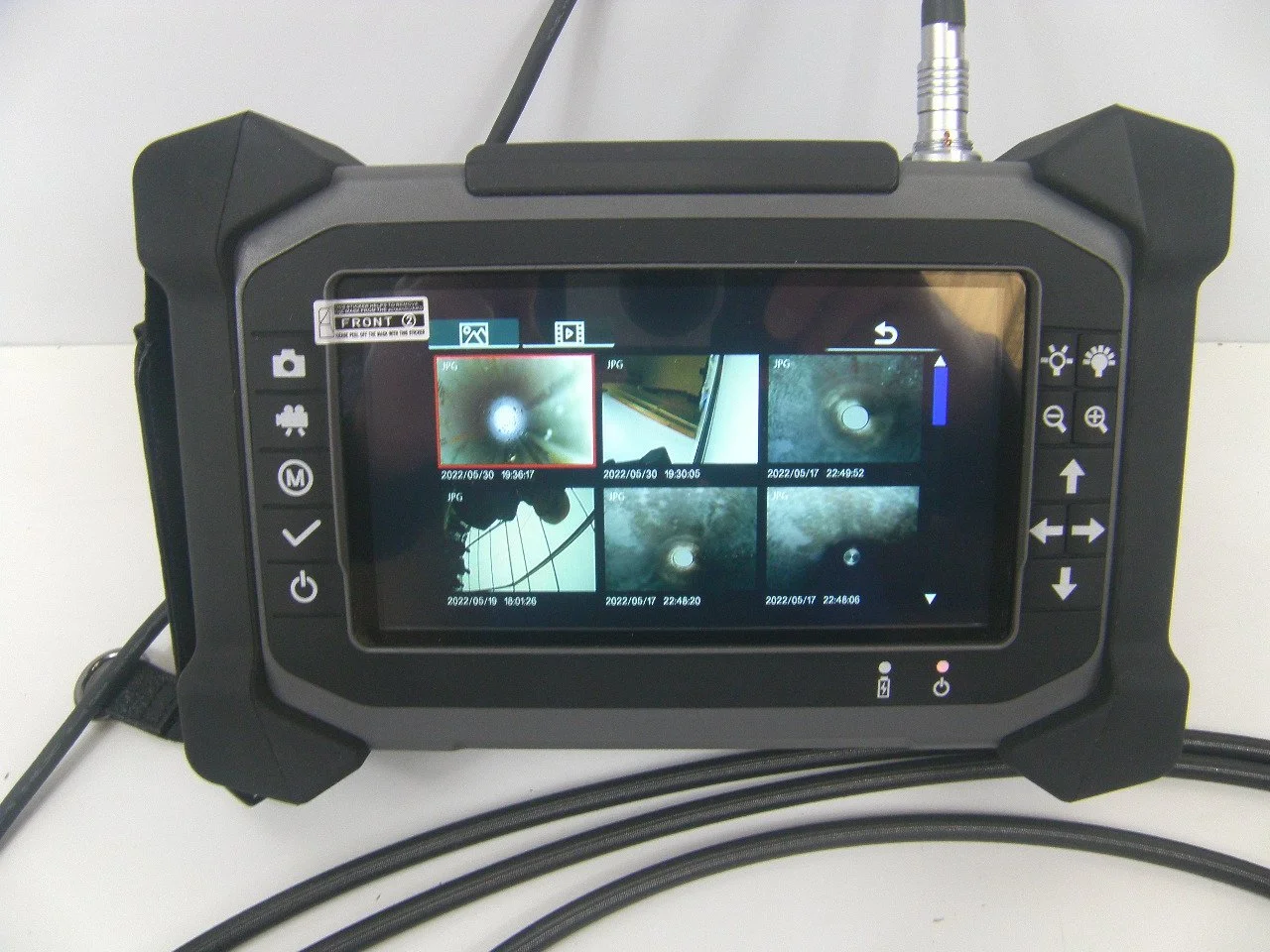

• Universal Touchscreen Image Hub with 7” LED Monitor 1280 x 720 pixels

• Detachable Controller with 4-Way Articulation via two separate dials

• 10 LEDs for exceptional Illumination

• Depth of Field 8mm - 80mm or 25mm - ∞ with 120° FOV

• Image Enhancement feature with 8 x Zoom

• Comparative Measurement feature  Working Temperature –10 to 50°C

• IP67 rated. EETI Certified (Hazardous Zones 1 & 2)

• Battery life to 4 hours, with permanent mains power option

• Pan, Tilt & Zoom 41mm Camera Head option

• Connects with VB-P Series

Part References

• VB-DX-8200 : 8.4mm diameter x 2000mm Working Length, Dual View

• VB-DX-8300 : 8.4mm diameter x 3000mm Working Length, Forward View (0° DOV)

• VB-DX-8500EX : 8.4mm diameter x 5000mm Working Length, Dual View, EX Certified

• VB-DX-8600 : 8.4mm diameter x 6000mm Working Length, Forward View (0° DOV)

• VB-DX-81500 : 8.4mm diameter x 15,000mm Working Length, Forward View (0° DOV)

• VB-DX-6600 : 6.4mm diameter x 6000mm Working Length, Forward View (0° DOV)

• VB-DX-6800 : 6.4mm diameter x 8,000mm Working Length, Forward View (0° DOV)

• VB-DX-61500 : 6.4mm diameter x 15,000mm Working Length, Forward View (0° DOV)

 8.4mm versions with Side View (90° DOV) Tip Adaptor
