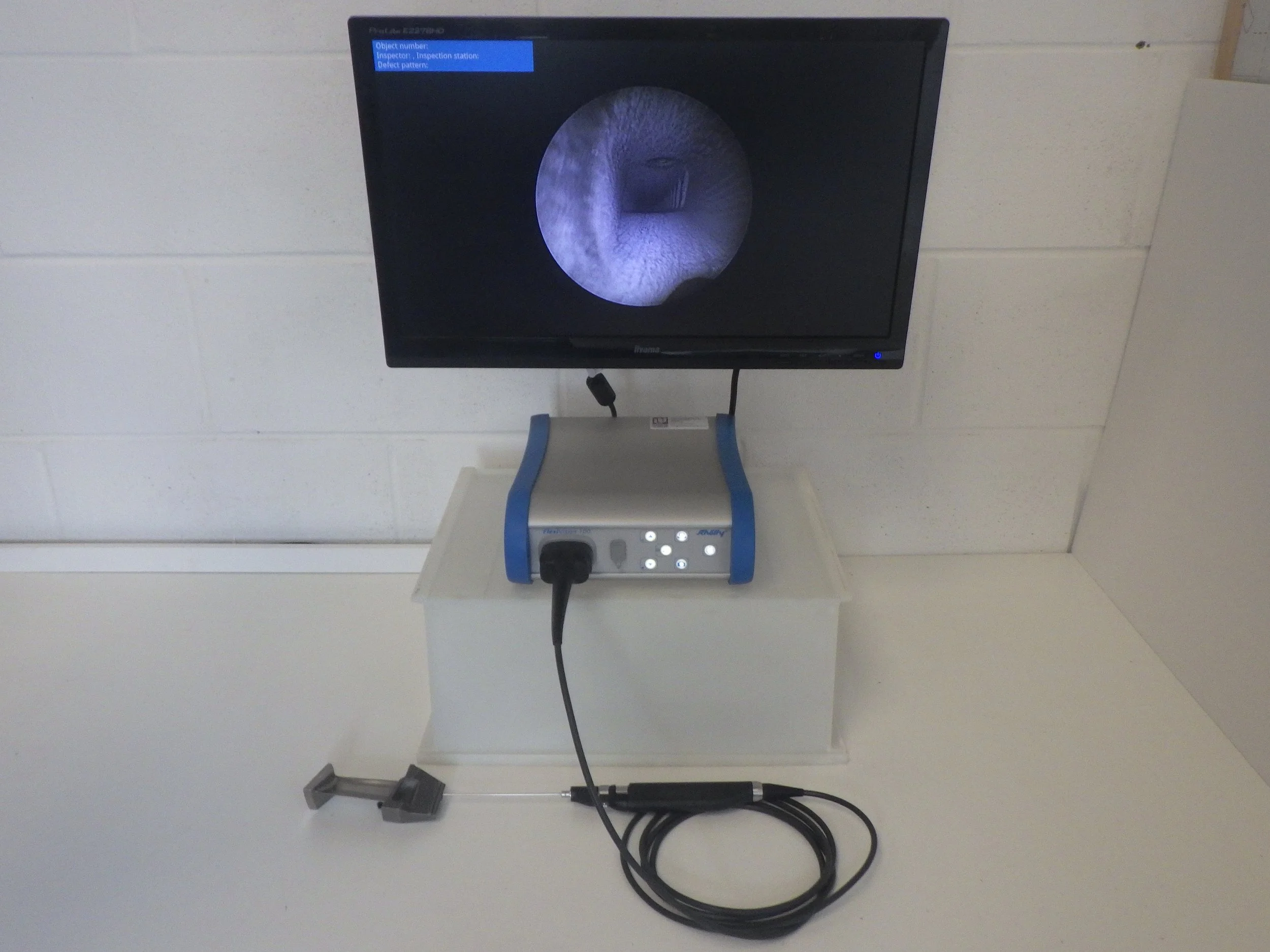

Flexivision 100 Inspection System
New Flexivision 100 Desktop Inspection System for Performance and Safety Critical Components Inspection
The Flexivision 100 Inspection System is a direct replacement for the highly successful FSC-2 Inspection System.
Whilst the Pencil Grip Handle has been upgraded, all FSC-2 Interchangeable Probe Attachments are still compatible. Additionally, a High Definition Camera Head is available, to enable both High Definition Rigid Borescopes and Fiber Optic Endoscopes to be used.
The new system offers high resolution 1920 x 1080 pixel image quality, with USB image storage.
New features include “Grid Reduction”, to minimise “honeycomb effect” when used with Fibre Optic scopes, "Split Screen" option, also "Colour Enhancement" and "Edge Enhancement" through use of video algorithms.
Flexivision 100 Split-Screen Feature
PROBE ATTACHMENTS FOR FLEXIVISION 100 DESKTOP INSPECTION SYSTEM
The following Probe Attachments are available from stock :-
96.0103s 0.7mm X 150mm (Forward View/ 6000 Pixel Image Bundle)
96.0124s 1.0mm X 150mm (Forward View/ 17,000 Pixel Image Bundle)
96.0132s 1.6mm X 135mm (Forward View/ 30,000 Pixel Image Bundle)
96.0168s 1.6mm X 135mm (Side View with 17,000 Pixel Image Bundle)
96.0405s 4.0mm X 170mm (Forward View/ Rod Lens)
The following Protection Tubes are available from stock :-
MSP.12150 1.2mm X 150mm Protection Tube - fits 96.0124s
MSP.18135 1.8mm X 135mm Protection Tube - fits 96.0132s

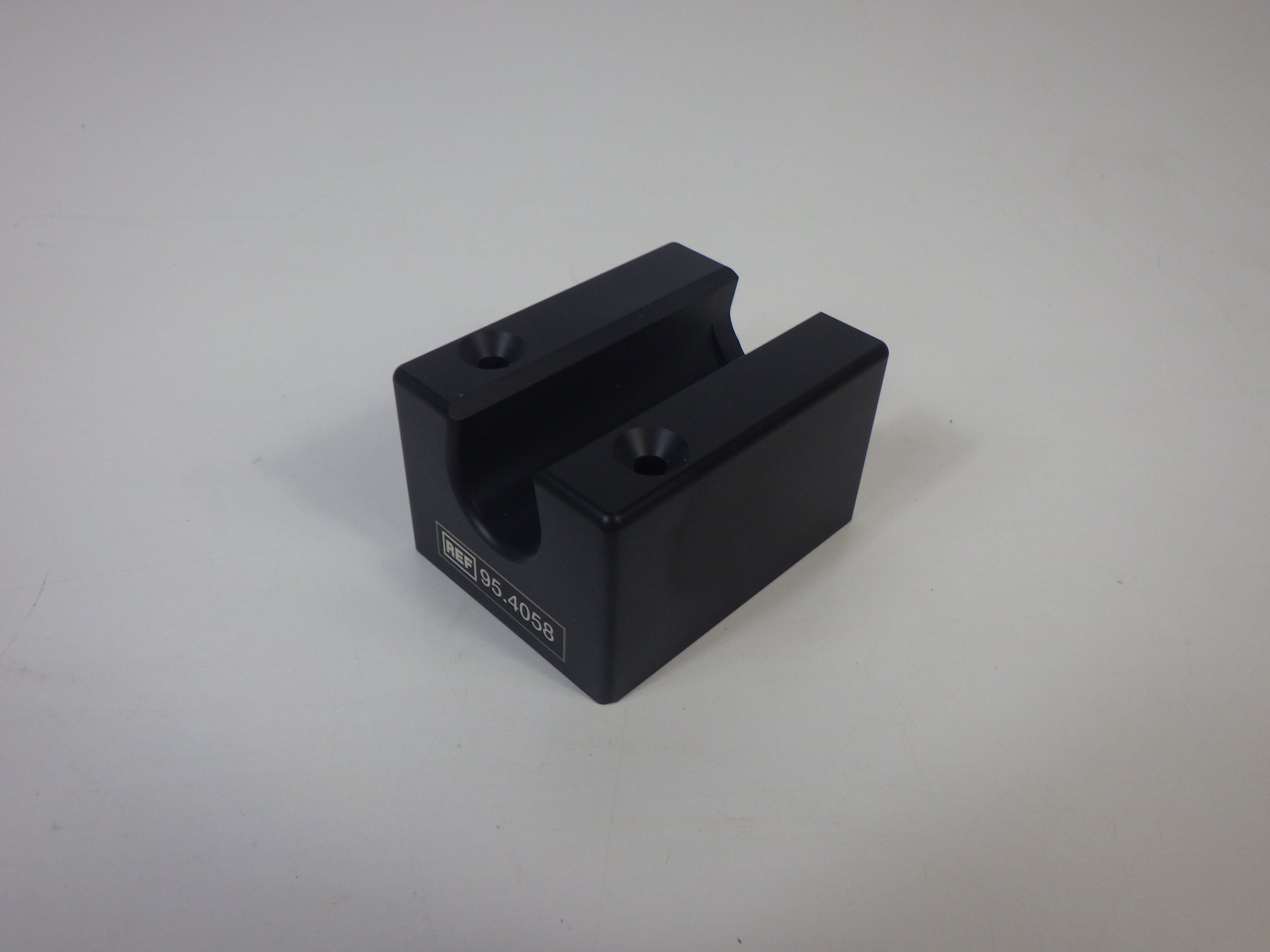

95.4058 Holder for Flexiscope 3 Handle
